VCS012 COB

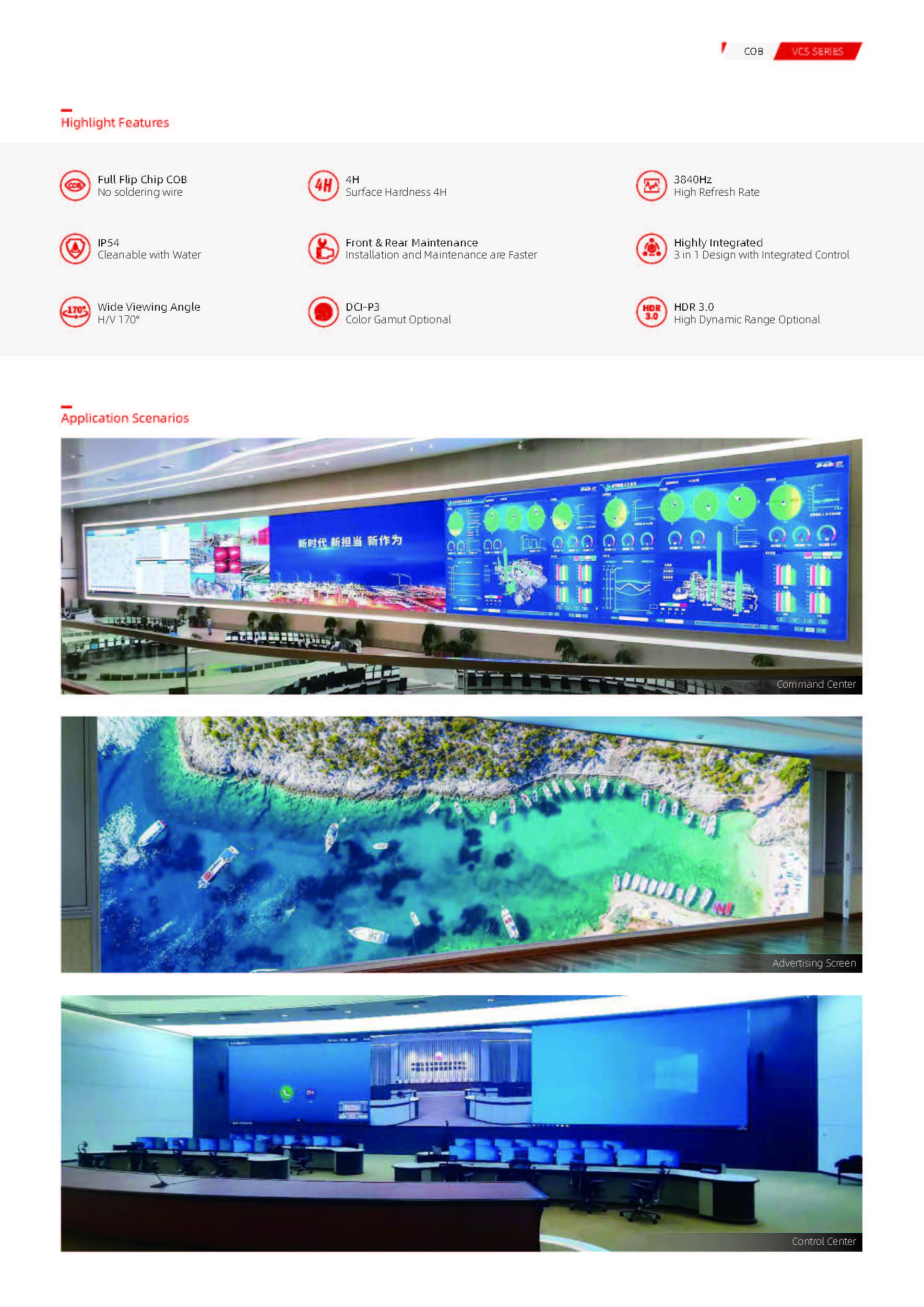

- Full Flip Chip COB
- No soldering wire
- IP54
- Cleanable with Water
- Wide Viewing Angle : H/V 170°
- Surface Hardness : 4H
- Front & Rear Maintenance
- DCI-P3 Color Gamut Optional
- Refresh Rate : 3840Hz
- Highly Integrated : 3 in 1 Design with Integrated Control
- HDR 3.0 Optional
N
Tech Spec
LED 세부 스펙
- Pixel Structure
- Full Flip Chip COB
- Pixel Pitch
- 1.25 mm
- Module Resolution
- 120 × 135
- Module Size
- 150 × 168.75 mm
- Module Weight
- 140 ± 0.5 g
- Cabinet Module Composition
- 2 × 4
- Cabinet Resolution
- 480 × 270
- Cabinet Size
- 600 × 337.5 × 39.75 mm
- Cabinet Area
- 0.2025 ㎡
- Weight
- 4 ± 0.5 kg/cabinet
- Pixel Density
- 640,000 dots/㎡
- Brightness
- 600 nits
- Color Temperature
- Adjustable from 3000 to 10000 K
- Viewing Angle
- 160° / 160°
- Brightness Uniformity
- ≥97%
- Color Uniformity
- ±0.003 Cx, Cy
- Contrast Ratio
- 10000:1
- Power Consumption
- Peak: 70 W/cabinet; 350 W/㎡ / Average: 24 W/cabinet; 120 W/㎡
- Power Supply Requirements
- AC100~240V (50/60Hz)
- Frame Rate
- 50 & 60 Hz
- Refresh Rate
- ≥3840 Hz
- Typical Life
- 100,000 hours
- Operating Temperature
- -10 ~ 40℃
- Storage Temperature
- -20 ~ 60℃
- Operating Humidity
- 10~80% without condensation
- Storage Humidity
- 10~85% without condensation
- IP Rating
- IP54
- Maintenance
- Front & Rear Maintenance
Calibration
- Single Pixel Brightness Calibration
- Yes
- Single Pixel Color Calibration
- Yes
Drive / HDR
- Drive Mode
- Common anode constant current PWM drive
- Grayscale
- 13 bit
- Current Adjustment Level
- 6 bit
- HDR Type Supported
- HDR10
Protection
- Protection Level
- IP54
- Surface Hardness
- 4H
- Cleaning
- Cleanable with Water
