HKS Series

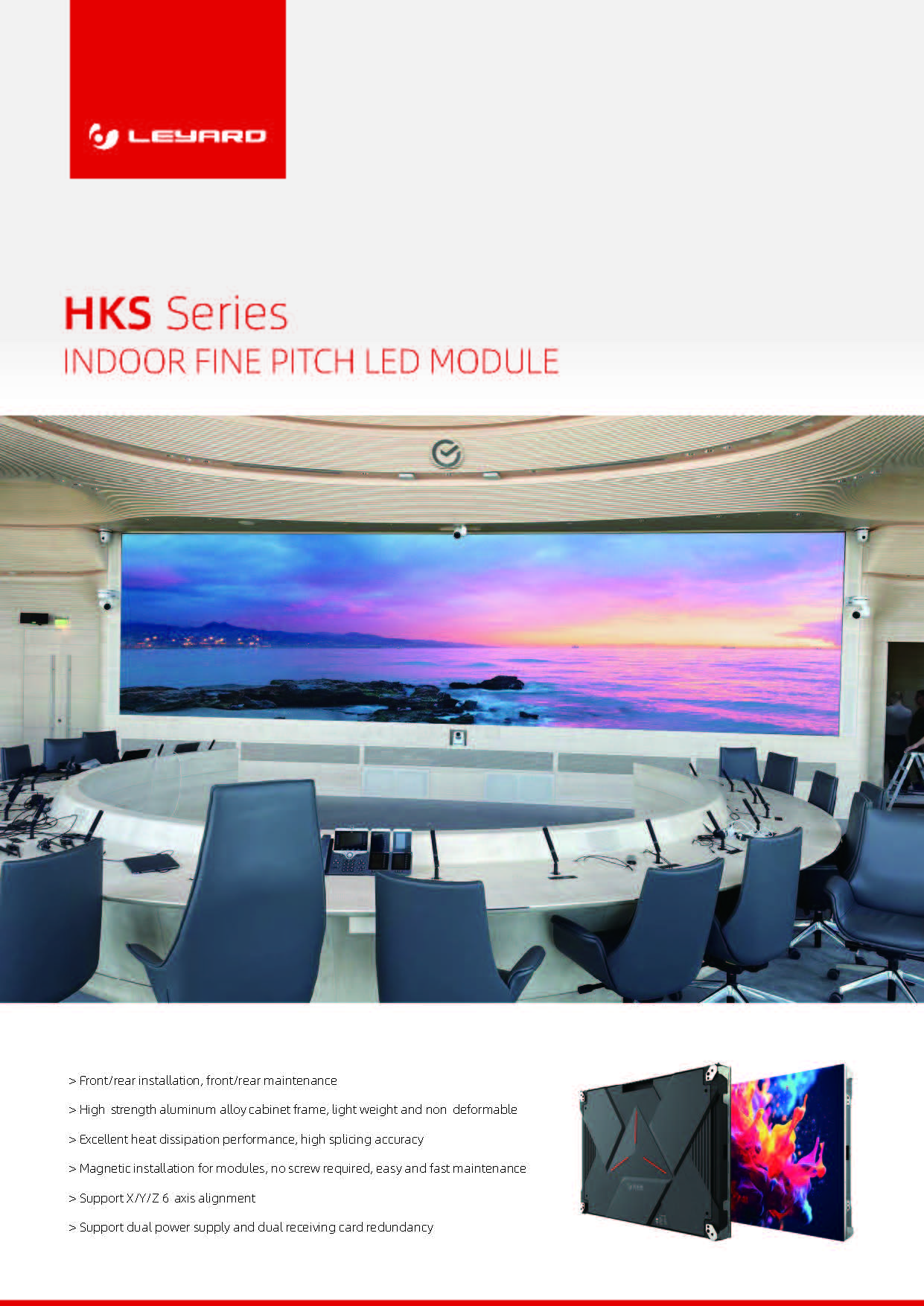

HKS Series Indoor Fine Pitch LED Module
모델:
LUS015

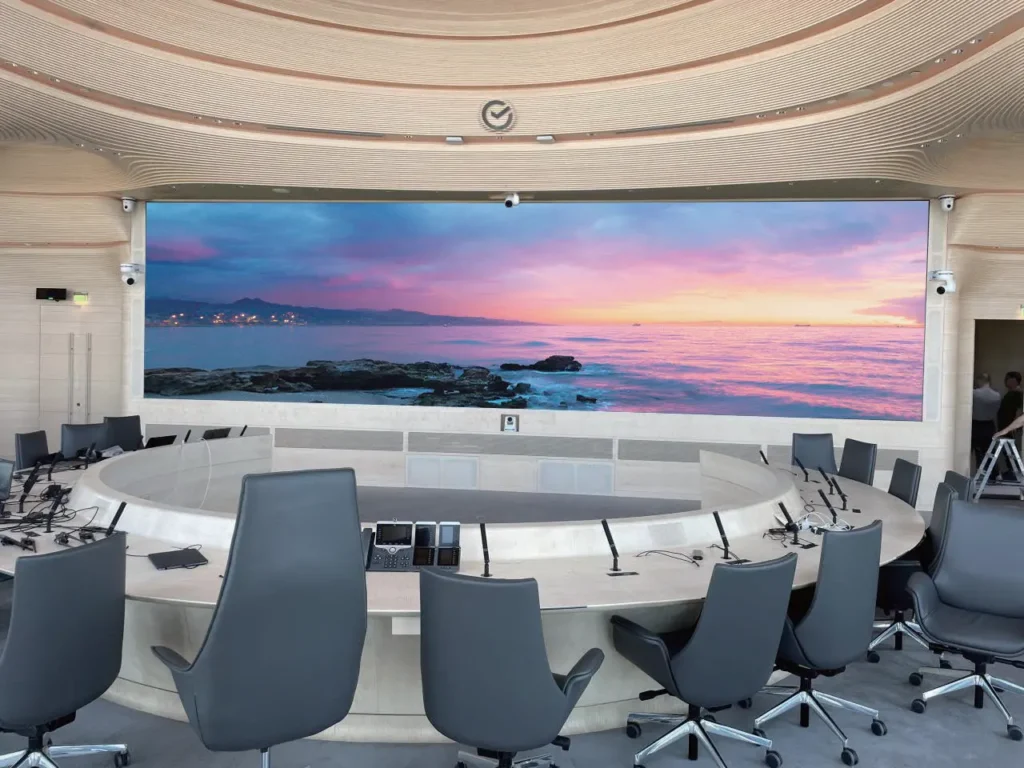

LUS015는 1.538mm 픽셀 피치를 적용한 HKS Series 실내용 LED 모듈입니다. 선명도와 설치 효율의 균형이 좋은 모델로, 회의실, 교육장, 홍보관, 전시장, 리테일 공간 등 다양한 실내 영상월 구축에 적합합니다.
핵심 기능

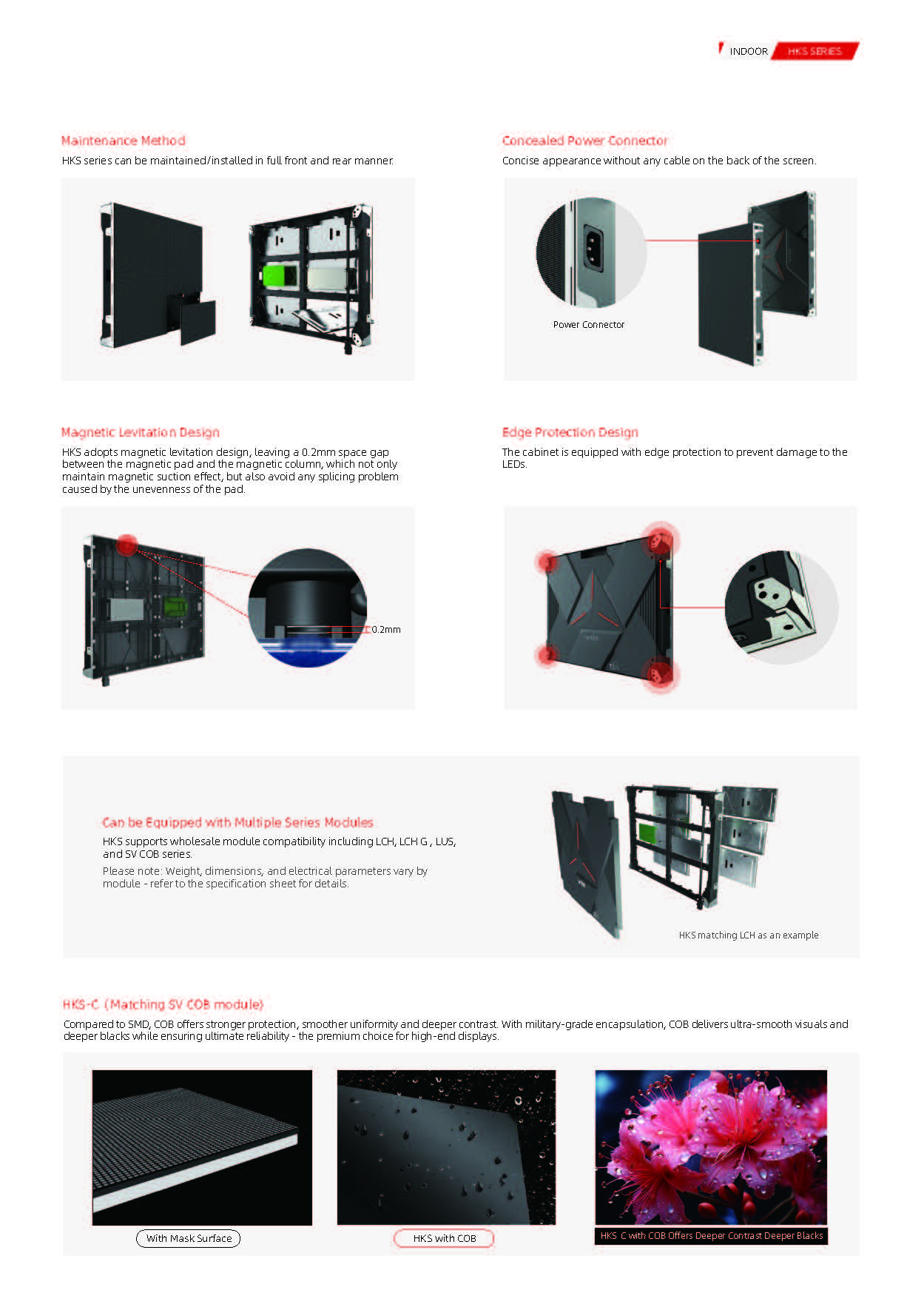

- Front/rear installation, front/rear maintenance
- High-strength aluminum alloy cabinet frame, light weight and non-deformable
- Excellent heat dissipation performance, high splicing accuracy
- Magnetic installation for modules, no screw required, easy and fast maintenance
- Support X/Y/Z 6-axis alignment
- Support dual power supply and dual receiving card redundancy
구매 / 프로젝트 문의
구매, 설치 상담, 제품 문의는
전문 상담을 통해 안내해 드립니다.
Tech Spec
LED 세부 스펙
- Pixel Structure
- SMD
- Pixel Pitch
- 1.538mm
- Module Resolution
- -
- Module Size
- -
- Module Weight
- -
- Cabinet Module Composition
- 2 × 3
- Cabinet Resolution
- 416 × 312
- Cabinet Size
- 640 × 480 × 69.35mm
- Cabinet Area
- 0.3072㎡
- Weight
- 7.1±0.1kg / cabinet
- Pixel Density
- 422,500 point/㎡
- Brightness
- ≥500nits
- Scanning Method
- 52S
- Color Temperature
- 3,000~38,000K Adjustable
- Viewing Angle
- Horizontal 160° / Vertical 140°
- Brightness Uniformity
- ≥97%
- Color Uniformity
- Within ±0.003 Cx,Cy
- Contrast Ratio
- 5,000:1
- Power Consumption
- Max ≤493W/㎡
Average ≤165W/㎡ - Power Supply Requirements
- AC100~240V / 200~240V
- Frame Rate
- 50 & 60Hz
- Refresh Rate
- ≥3,840Hz
- Typical Life
- 100,000 hours
- Operating Temperature
- -10~40℃
- Storage Temperature
- -20~60℃
- Operating Humidity
- 10~80% RH, no condensation
- Storage Humidity
- 10~85% RH, no condensation
- IP Rating
- -
- Maintenance
- Front & Rear Maintenance
