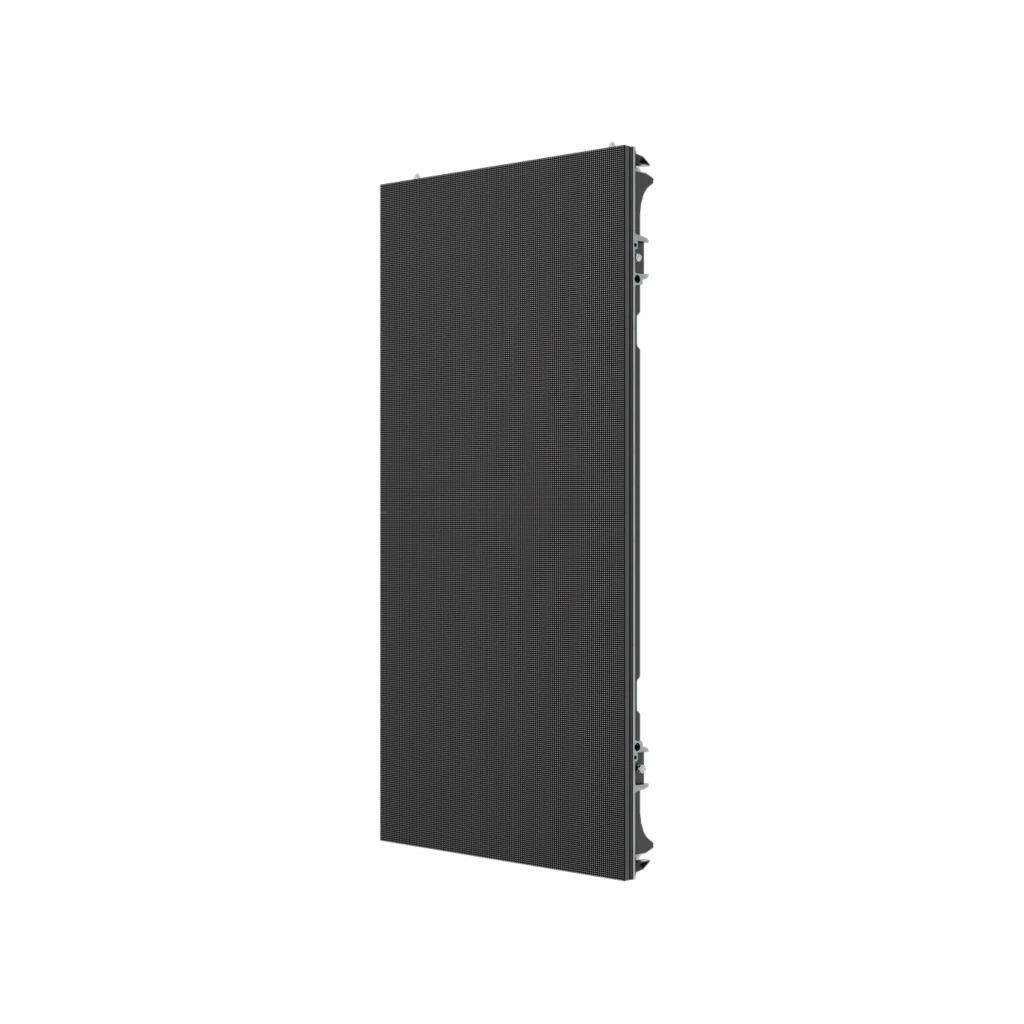

LWBC (3 in 1 SMD)

LG Window Facing LED - P2.98

모델: LWBC029

P2.6 P2.98 P3.91

2.98mm 픽셀피치와 3,500nit 밝기를 제공하며, 슬림 베젤과 퀵 락·플립 디자인, 전면 또는 후면 유지보수를 지원하는 LG Window Facing LED입니다.

핵심 기능

Pixel Pitch: 2.98 mm
Brightness: 3,500 nit
Slim Bezel
Long-lasting High Performance
Quick Lock & Flip Design
Front or Rear Serviceability

구매 문의하기 ↗ 공식 제품 정보 보기 ↗

LG Window Facing LED – P3.91 – LWBC039 상세 이미지 1

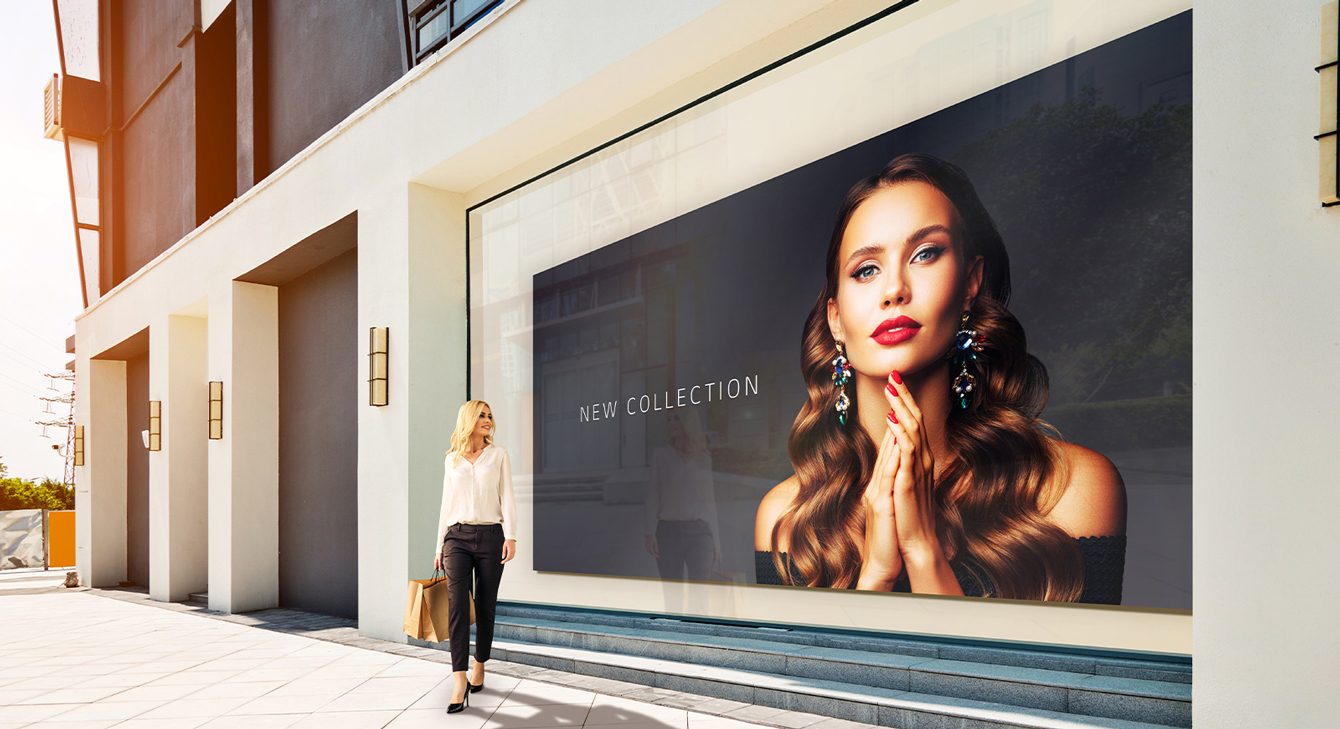

High Brightness Window Facing LED Display

* All images in this datasheet are for illustrative purposes only.

LG Window Facing LED – P3.91 – LWBC039 상세 이미지 3

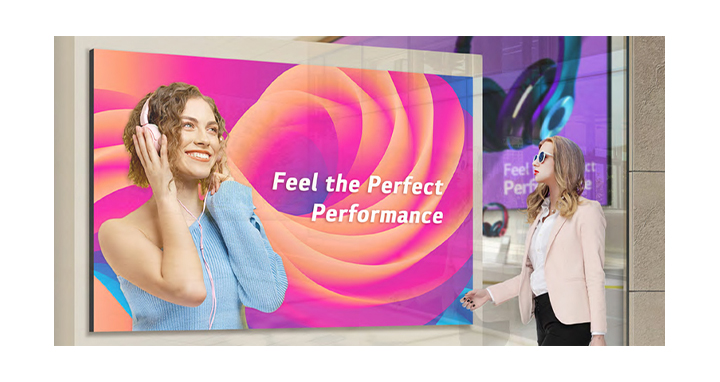

High Visibility Under the Sunlight

With a great brightness of 3,500 nits, the LWBC Indoor LED Signage clearly delivers content and attracts public attention, making it the ultimate display for outdoor visibility.

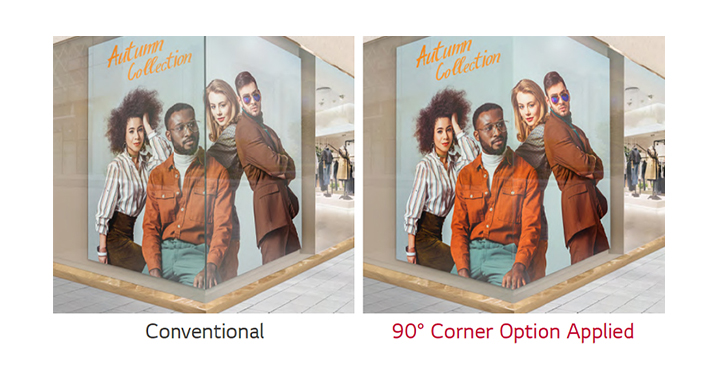

90° Corner Design Available

If you add the 90° corner option, the LWBC Indoor LED Signage series fits naturally into the space and delivers smooth & flawless content to customers.

LG Window Facing LED – P3.91 – LWBC039 상세 이미지 4

LG Window Facing LED – P3.91 – LWBC039 상세 이미지 5

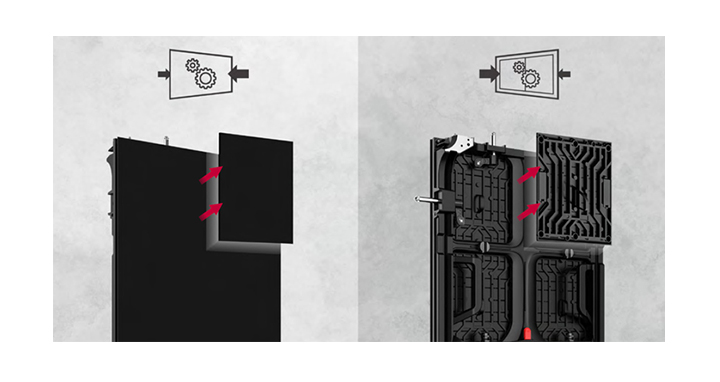

Front or Rear Installation & Maintenance

Easy access to the front or rear cabinet for maintenance ensures that the LWBC Indoor LED Signage is user-friendly.

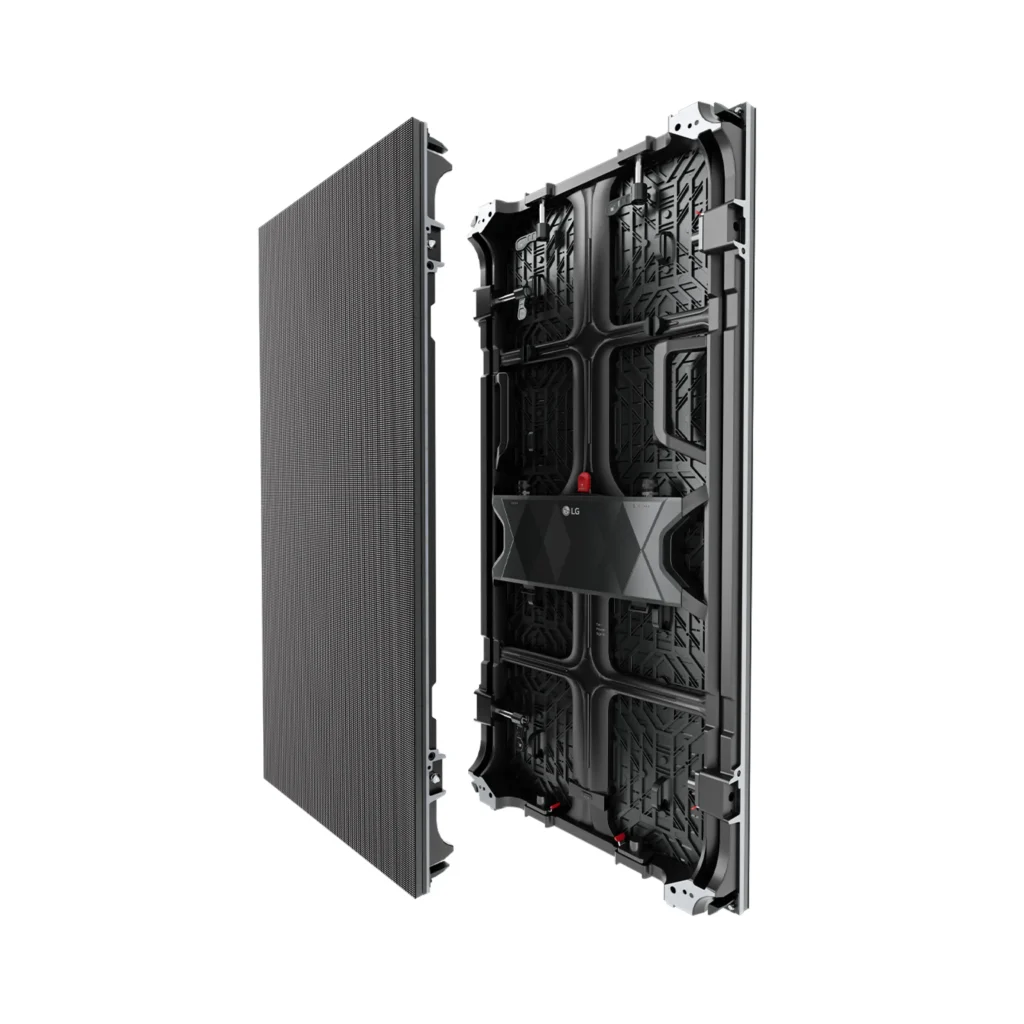

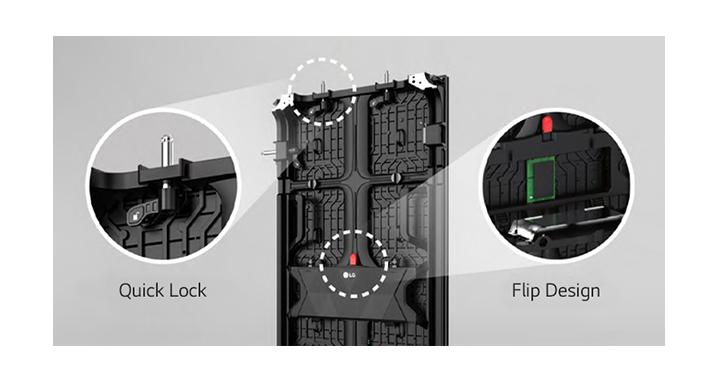

Quick Lock & Flip Design

Easy installation with a quick lock system of LWBC LED Screen maintains outstanding alignment. The flip design also makes it easy to repair and replace the integrated power system and reception card.

LG Window Facing LED – P3.91 – LWBC039 상세 이미지 6

LG Window Facing LED – P3.91 – LWBC039 상세 이미지 7

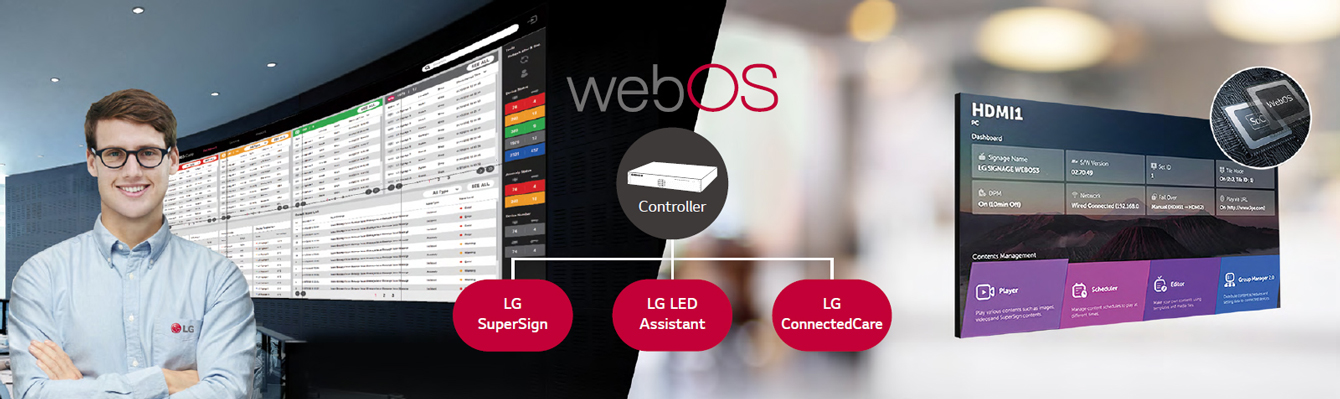

Compatibility with LG Software Solutions

Powered by LG’s high-performance system controller, the LWBC Indoor LED Signage series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.

* The availability of the ‘LG ConnectedCare’ service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.

구매 / 프로젝트 문의

구매, 설치 상담, 제품 문의는
전문 상담을 통해 안내해 드립니다.

문의 페이지 바로가기 ↗

Tech Spec

Physical Parameter

Pixel Pitch (mm): 2.976
Pixel Configuration: 3 in 1 SMD
Module Resolution (W x H): 84 × 84
Module Dimensions (W x H, mm): 250 × 250
Weight per Module (kg): 0.70 (±0.003 kg)
Cabinet Resolution (W × H): 192 × 384 (-GD) / 96 × 192 (-CD)
Cabinet Dimensions (W × H × D, mm): 500 × 1,000 × 69 (-GD) / 250 × 500 × 69 (-CD)
No. of Modules per Cabinet (W × H): 2 × 4 (-GD) / 1 × 2 (-CD)
Cabinet Surface Area (m²): 0.500 (-GD) / 0.125 (-CD)
Weight per Cabinet (kg/cabinet): 13.0 (-GD) / 4.7 (-CD)
Weight per Square Meter (kg/m²): 26.0 (-GD) / 37.6 (-CD)
Physical Pixel Density (pixels/m²): 112,896
Flatness of Cabinet: 0.5
Cabinet Material: Die Casting Aluminum
Service Access: Front or Rear

Optical Specifications

Max. Brightness (After Calibration): 3,500
Color Temperature: 3,200-9,300 (K)
Visual Viewing Angle (Horizontal/Vertical): 160 × 140
Brightness Uniformity: 97%
Color Uniformity: ±0.003 Cx,Cy
Contrast Ratio: 5,000 : 1 (Typ.)
Processing Depth (bit): 16 (HDR10, HDR10 Pro)

Electrical Specifications

Power Consumption (W/Cabinet, Max.): 300 (-GD) / 80 (-CD)
Power Consumption (W/Cabinet, Avg.): 100 (-GD) / 27 (-CD)
Power Consumption (W/m², Max.): 600 (-GD) / 640 (-CD)
Power Consumption (BTU/Cabinet, Max.): 1,024 (-GD) / 273 (-CD)
Power Consumption (BTU/Cabinet, Avg.): 341 (-GD) / 92 (-CD)
Power Consumption (BTU/㎡, Max.): 2,047 (-GD) / 2,184 (-CD)
Power Supply (V): 100 to 240
Frame Rate (Hz): 50 / 60
Refresh Rate (Hz): 3,840

Operation Conditions

Lifetime (Hours to Half Brightness): 100,000
Operating Temperature (°C): -20 to +40
Operating Humidity: 10-90% RH
IP Rating Front / Rear: IP5X / IP5X
