GSPB (단일 SMD)

LG Outdoor LED - P3.91

모델: GSPB039

3.91mm 픽셀피치, 최대 8,000nit 밝기, 전후면 IP65 등급과 전면·후면 서비스 구조를 제공하는 중거리용 LG Outdoor LED입니다.

핵심 기능

  • Pixel Pitch : 3.91 mm
  • Brightness : 8,000 nit (Max.)

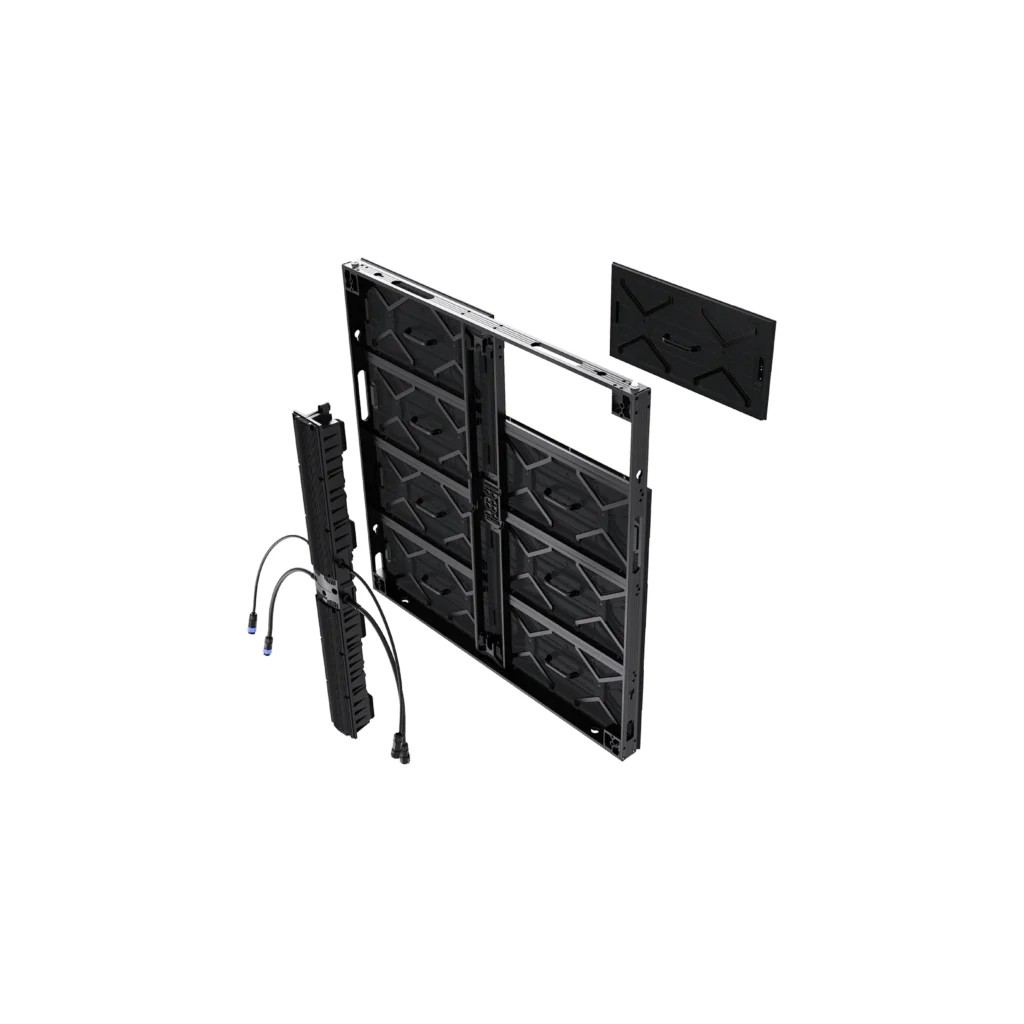

  • Service Access : Front and Rear
  • IP Rating : IP65 (Front / Rear)

Outdoor Signage for
Medium-Range Attraction

Engage Passersby with Eye-Catching Displays.

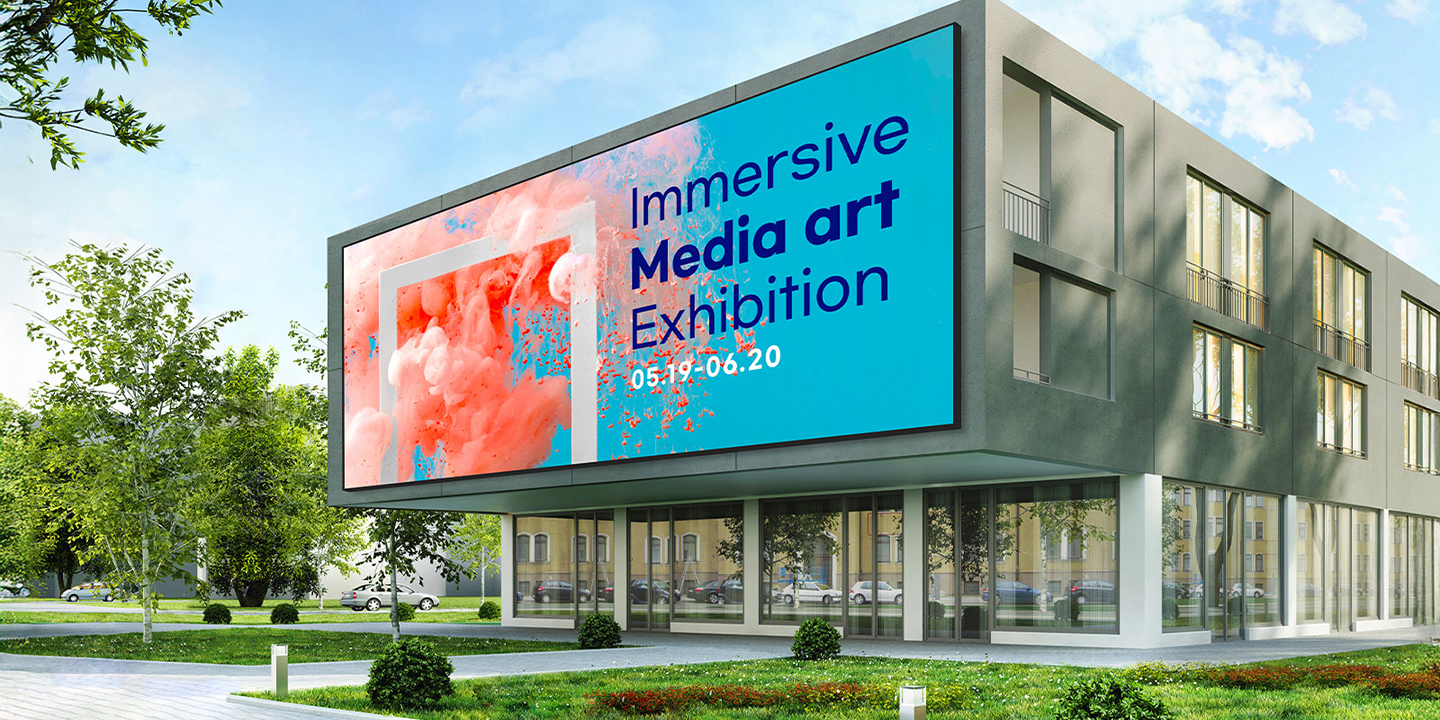

LG Outdoor LED – P3.91 – GSPB039 상세 이미지 1

* All images in this page are for illustrative purposes only.

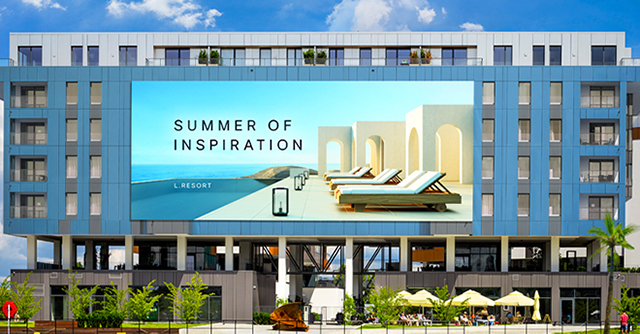

LG Outdoor LED – P3.91 – GSPB039 상세 이미지 3

Medium-Range Attraction

Designed for medium-range applications, the GSPB series model excels at drawing attention from a moderate distance. Perfect for shopping malls and low-rise building exteriors, it ensures your message is seen with just a glance upward.

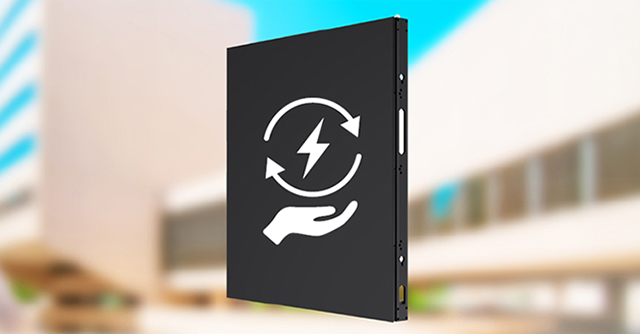

Enhanced Energy Efficiency

Compared to LG’s previous standard model, the brightness has increased by 3,000 nits while maintaining slightly lower power consumption levels. This means that the display is both brighter and more energy-efficient, which can help save on operating costs.

* The comparison is with the GSCD39-KK model. GSCD039-KK : 660 W/sqm, GSPB039-CA : 630 W/sqm

LG Outdoor LED – P3.91 – GSPB039 상세 이미지 4
LG Outdoor LED – P3.91 – GSPB039 상세 이미지 5

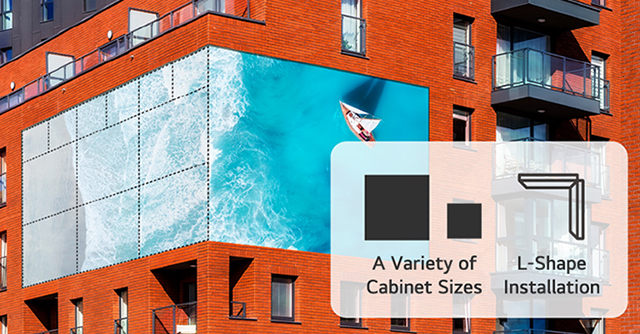

Flexible Installation

The GSPB series offers two sizes of cabinets, allowing for a screen size configuration that perfectly meets customer demands. Both side-cut cabinets can also be used as described. The GSPB series integrates seamlessly into the space and delivers smooth content to customers.

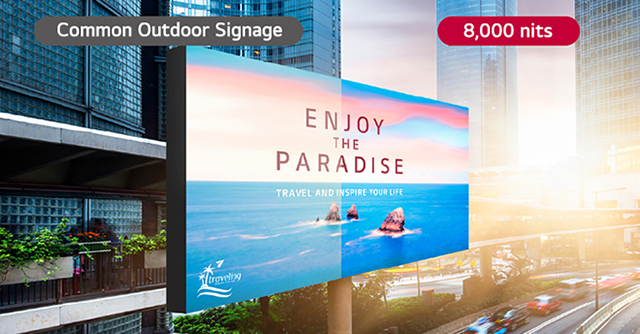

High Brightness for Outdoor

With a great brightness of 8,000 nits, it clearly delivers content and attracts public attention, which is the suitable display for outdoor visibility.

LG Outdoor LED – P3.91 – GSPB039 상세 이미지 6

Compatibility with LG Software Solutions

When connected with LG’s CVCA / CBCA system controller, the GSPB series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.

* The availability of the ‘LG ConnectedCare’ service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
** The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)

LG Outdoor LED – P3.91 – GSPB039 상세 이미지 7

* Actual GUI may vary in different webOS versions.
* LG Software solutions needs to be purchased separately.

구매 / 프로젝트 문의

구매, 설치 상담, 제품 문의는
전문 상담을 통해 안내해 드립니다.

문의 페이지 바로가기

Tech Spec

Physical Parameter

Pixel Pitch (mm)
3.91
Pixel Configuration
Single SMD
Module Resolution (W x H)
128 × 64
Module Dimensions (W x H, mm)
500 × 250
Weight per Module (kg)
1.6
Cabinet Resolution (W × H)
256 × 256 (CA/CAC) / 128 × 128 (CB/CBC)
Cabinet Dimensions (W × H × D, mm)
1,000 × 1,000 × 87 (CA/CAC) / 500 × 500 × 83 (CB/CBC)
No. of Modules per Cabinet (W × H)
2 × 4 (CA/CAC) / 1 × 2 (CB/CBC)
Cabinet Surface Area (m²)
1 (CA/CAC) / 0.25 (CB/CBC)
Weight per Cabinet (kg/cabinet)
23 (CA/CAC) / 8 (CB/CBC)
Weight per Square Meter (kg/m²)
23 (CA/CAC) / 32 (CB/CBC)
Physical Pixel Density (pixels/m²)
65,536
Flatness of Cabinet
±0.5
Cabinet Material
Profile Aluminum
Service Access
Front and Rear

Optical Specifications

Max. Brightness (After Calibration)
8,000
Color Temperature
3,200-9,300 (K)
Visual Viewing Angle (Horizontal/Vertical)
160 × 155
Brightness Uniformity
0.97
Color Uniformity
±0.003 Cx,Cy
Contrast Ratio
20,000 : 1
Processing Depth (bit)
16 (HDR10, HDR10 Pro)

Electrical Specifications

Power Consumption (W/Cabinet, Max.)
630 (CA/CAC) / 158 (CB/CBC)
Power Consumption (W/Cabinet, Avg.)
210 (CA/CAC) / 53 (CB/CBC)
Power Consumption (W/m², Max.)
630
Heat Dissipation (BTU/h/Cabinet, Max.)
2,150 (CA/CAC) / 539 (CB/CBC)
Heat Dissipation (BTU/h/Cabinet, Avg.)
717 (CA/CAC) / 181 (CB/CBC)
Heat Dissipation (BTU/h/㎡, Max.)
2,150
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
7,680

Operation Conditions

Lifetime (Hours to Half Brightness)
100,000
Operating Temperature (°C)
-30 to +50
Operating Humidity
10-99% RH
IP Rating Front / Rear
IP65 / IP65

Certification

Certification
CE, ETL, FCC, CB (TBD), BIS (TBD), KC (TBD), EMC Class A
Fire Protection
BS476 Part 7 Class 2, EN13501-1 Class B

Environment

Environment
RoHS, REACH

Controller

Controller
CVCA / CBCA / LCIN

90 Degree Corner Cut

90 Degree Corner Cut
No (CA/CB) / Both Cut (CAC/CBC)
