GSPC (단일 SMD)

LG Outdoor LED - P2.98

모델: GSPC029

P2.98

2.98mm 픽셀피치, 최대 5,500nit 밝기, 전후면 IP66 등급과 전면·후면 서비스 구조를 제공하는 근거리용 LG Outdoor LED입니다.

핵심 기능

Pixel Pitch : 2.98 mm
Brightness : 5,500 nit
Service Access : Front and Rear
IP Rating : IP66 (Front / Rear)

구매 문의하기 ↗ 공식 제품 정보 보기 ↗

Outdoor Signage for
Short-Range Impactv

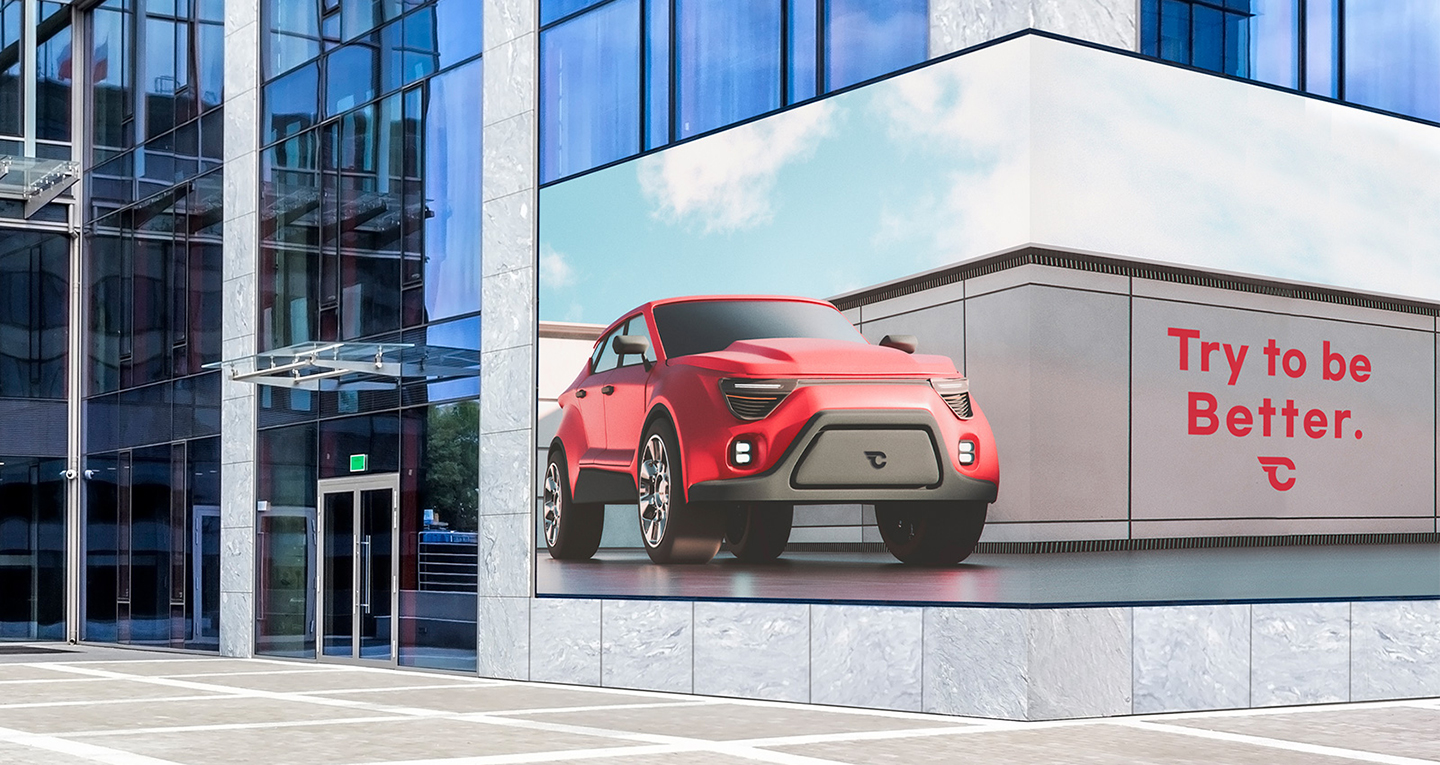

LG Outdoor LED – P2.98 – GSPC029 상세 이미지 1

* All images in this page are for illustrative purposes only.

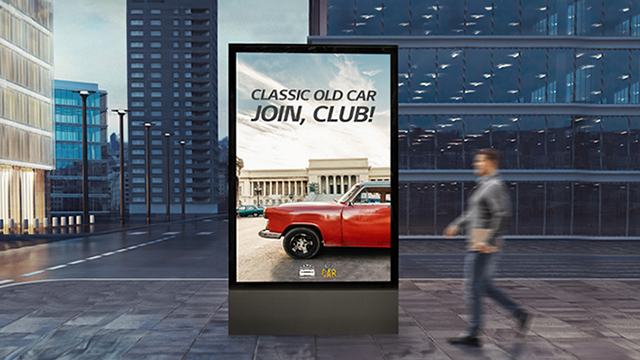

LG Outdoor LED – P2.98 – GSPC029 상세 이미지 3

Eye-level Pitch for Outdoor

Unlike traditional large-scale screens that are typically installed at a height for visibility, the GSPC Outdoor LED Signage series features a low pixel pitch of 2.98 mm, allowing for installation at eye level and enabling clear image display even on smaller screens.

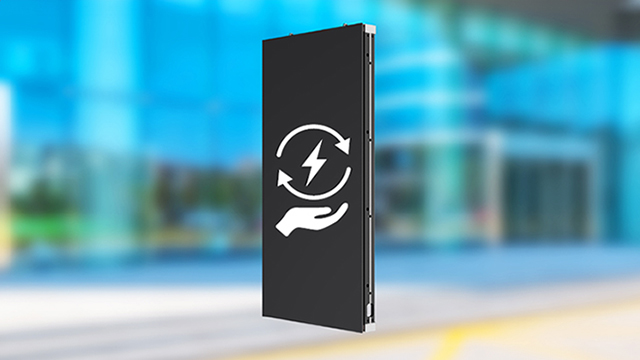

Enhanced Energy Efficiency

Compared to LG’s traditional model, power consumption has decreased by more than 27%*, based on the same brightness. This means that operating costs of your LED Screen can be significantly reduced.

* Power consumption improvement is compared to the LG GSCF026-GP model.
* Test Information Details (1) Testing Institution: LGE Internal, (2) Testing Criteria: Power consumption measured while operating at 5,500 nits brightness (full white, after calibration), (3) Model Names: GSPC029-GA, GSCF026-GP, (4) Test Results: Each below 520 W/sqm, below 720 W/sqm
* Actual results may vary depending on the use environment.

LG Outdoor LED – P2.98 – GSPC029 상세 이미지 4

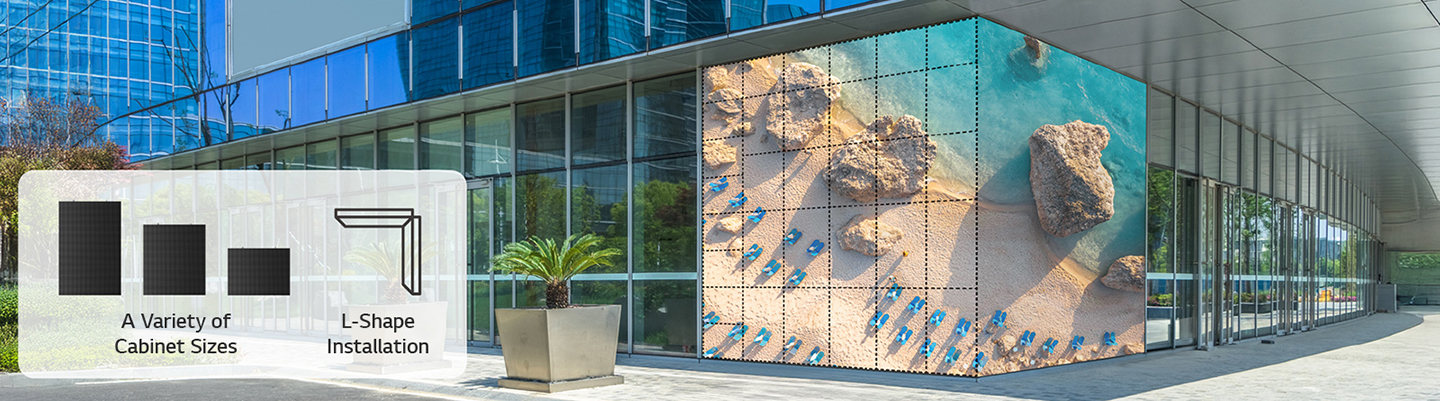

Flexible Installation

The GSPC series offers three sizes of cabinets, allowing for a screen size configuration that perfectly meets customer demands. Both side-cut cabinets can also be used as described. The GSPC series integrates seamlessly into the installation place and clear content to customers,, making it a versatile LED Screen solution.

LG Outdoor LED – P2.98 – GSPC029 상세 이미지 5

Compatibility with LG Software Solutions

When connected with LG’s CVGA system controller, the GSPC series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business and Outdoor LED Signage properly.

* The availability of the ‘LG ConnectedCare’ service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.

LG Outdoor LED – P2.98 – GSPC029 상세 이미지 7

* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* LG Software solutions needs to be purchased separately.

구매 / 프로젝트 문의

구매, 설치 상담, 제품 문의는
전문 상담을 통해 안내해 드립니다.

문의 페이지 바로가기 ↗

Tech Spec

Physical Parameter

Pixel Pitch (mm): 2.98
Pixel Configuration: Single SMD
Module Resolution (W x H): 84 × 84
Module Dimensions (W x H, mm): 250 × 250
Weight per Module (kg): 1
Cabinet Resolution (W × H): 168 × 336 (GA/GAC) / 168 × 252 (GB/GBC) / 168 × 168 (GC/GCC)
Cabinet Dimensions (W × H × D, mm): 500 × 1,000 × 68 (GA/GAC) / 500 × 750 × 68 (GB/GBC) / 500 × 500 × 68 (GC/GCC)
No. of Modules per Cabinet (W × H): 2 × 4 (GA/GAC) / 2 × 3 (GB/GBC) / 2 × 2 (GC/GCC)
Cabinet Surface Area (m²): 0.5 (GA/GAC) / 0.375 (GB/GBC) / 0.25 (GC/GCC)
Weight per Cabinet (kg/cabinet): 16 (GA/GAC) / 12.75 (GB/GBC) / 8.75 (GC/GCC)
Weight per Square Meter (kg/m²): 32 (GA/GAC) / 33 (GB/GBC) / 35 (GC/GCC)
Physical Pixel Density (pixels/m²): 112,896
Flatness of Cabinet: ± 0.2 mm
Cabinet Material: Aluminum
Service Access: Front and Rear

Optical Specifications

Max. Brightness (After Calibration): 5,500 (Max.)
Color Temperature: 3,200-9,300 (K)
Visual Viewing Angle (Horizontal/Vertical): 160 × 140
Brightness Uniformity: 97%
Color Uniformity: ± 0.003 Cx,Cy
Contrast Ratio: 10,000 : 1
Processing Depth (bit): 14 (HDR10, HDR10 Pro)

Electrical Specifications

Power Consumption (W/Cabinet, Max.): 260 (GA/GAC) / 190 (GB/GBC) / 130 (GC/GCC)
Power Consumption (W/Cabinet, Avg.): 87 (GA/GAC) / 64 (GB/GBC) / 43 (GC/GCC)
Power Consumption (W/m², Max.): 520
Heat Dissipation (BTU/h/Cabinet, Max.): 887 (GA/GAC) / 648 (GB/GBC) / 444 (GC/GCC)
Heat Dissipation (BTU/h/Cabinet, Avg.): 297 (GA/GAC) / 218 (GB/GBC) / 150 (GC/GCC)
Heat Dissipation (BTU/h/㎡, Max.): 1,774
Power Supply (V): 100 to 240
Frame Rate (Hz): 50 / 60
Refresh Rate (Hz): 3,840

Operation Conditions

Lifetime (Hours to Half Brightness): 100,000
Operating Temperature (°C): -30 to +50
Operating Humidity: 10-90% RH
IP Rating Front / Rear: IP66 / IP66

Certification

Fire Protection: BS476 Part7 Class1 & EN13501-1 Class B
Certification: CE, CB, ETL, FCC, BIS, KC (TBD)

Environment

Environment: RoHS, REACH

Controller

Controller: CVGA / LCQT

90 Degree Corner Cut

90 Degree Corner Cut: Yes (GSPC029-GAC/GBC/GCC)
