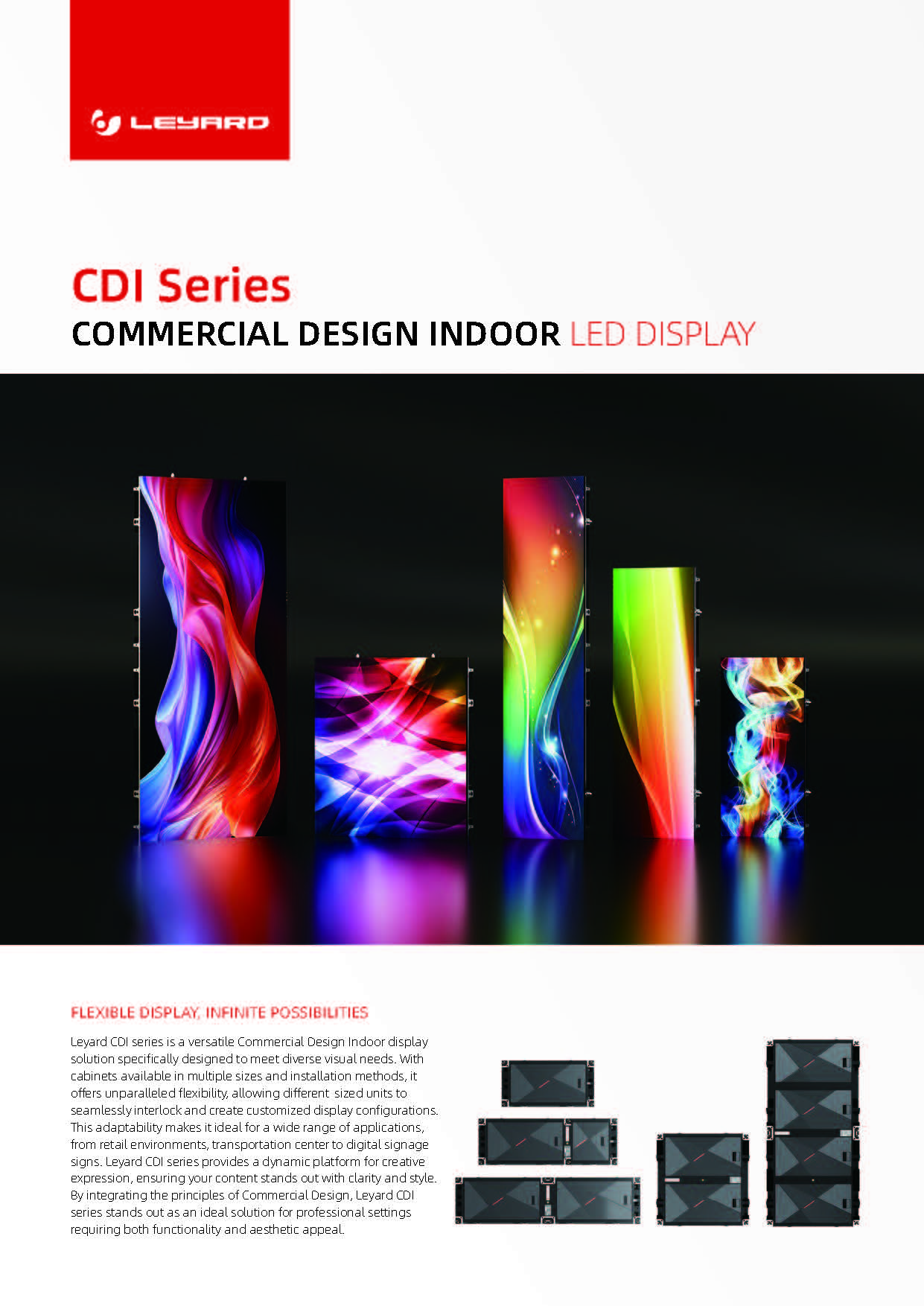

CDI Series
CDI Series Commercial Design Indoor LED Display
모델:
CDI015
CDI015는 1.5625mm 픽셀 피치를 적용한 CDI Series 실내용 LED 디스플레이입니다. 선명도와 설치 효율의 균형이 좋은 모델로, 리테일 매장, 쇼룸, 기업 공간, 교통시설, 디지털 사이니지 등 다양한 상업 환경에 적합합니다.

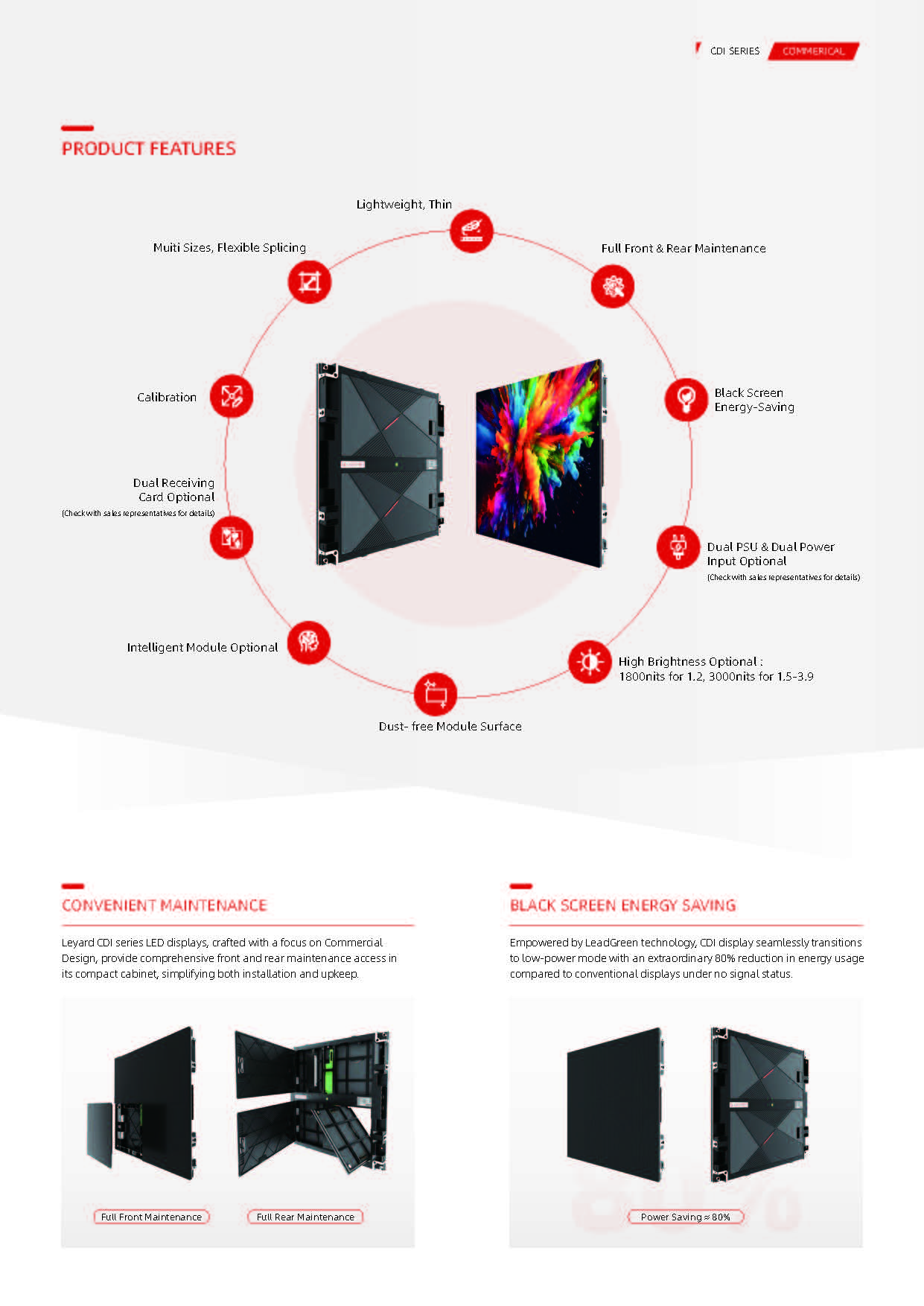

핵심 기능

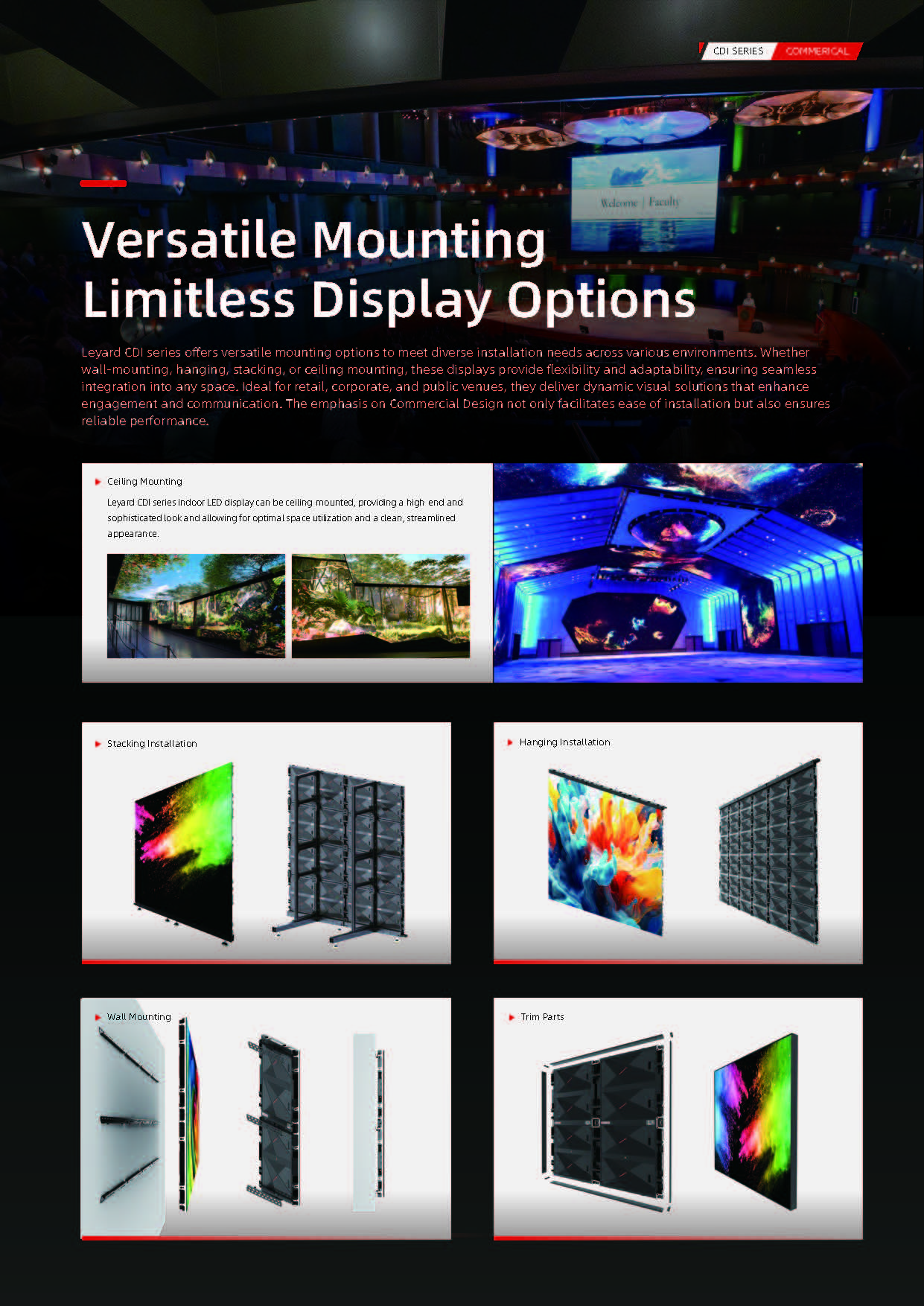

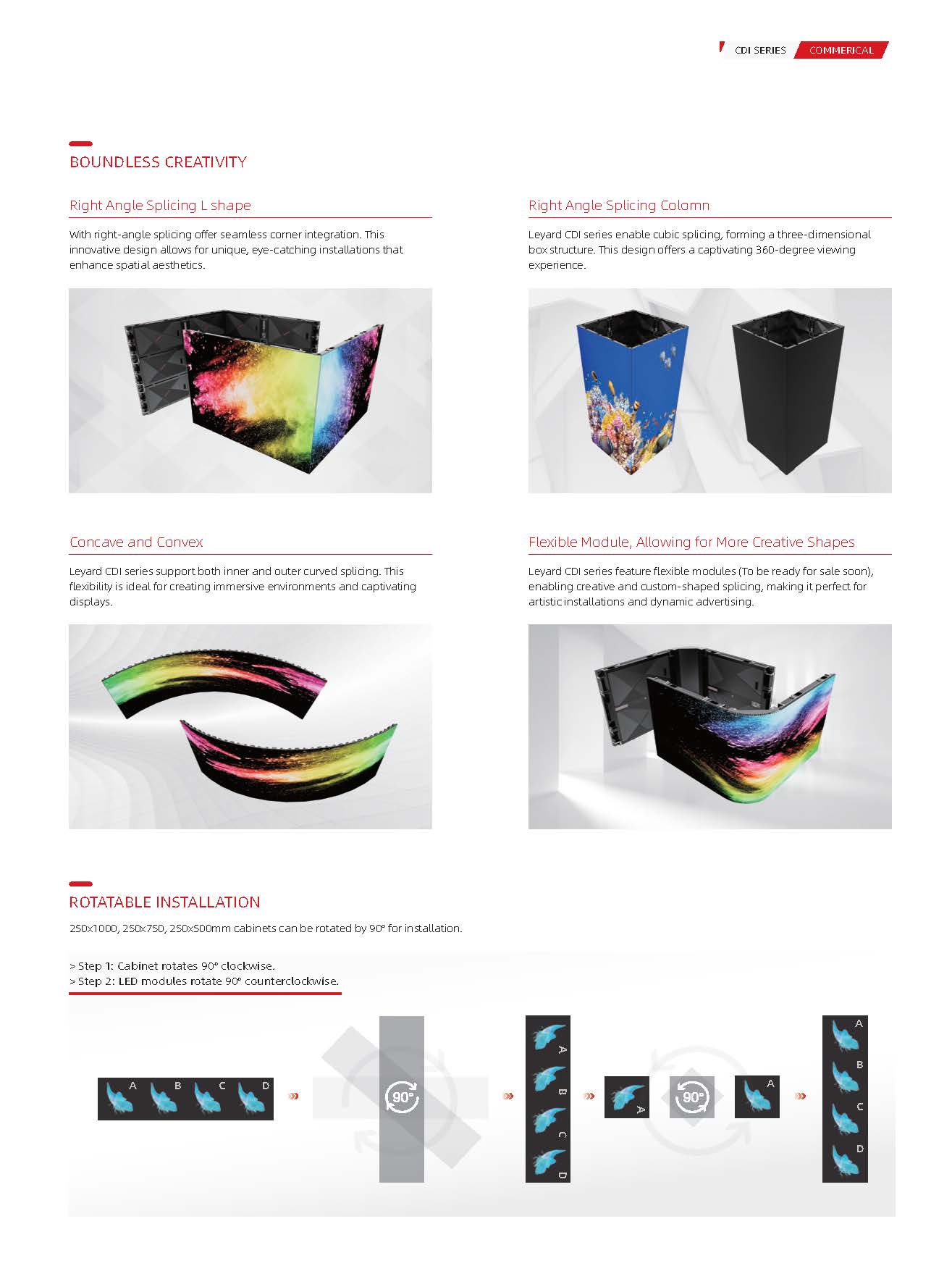

- 3 Banner cabinets, capable of achieving 90 °rotation installation
- 8 sizes of creative designs for the commercial retail market
- Flexible splicing to achieve any shape, size, or form
- Black Screen Energy Saving (Standard)
구매 / 프로젝트 문의
구매, 설치 상담, 제품 문의는
전문 상담을 통해 안내해 드립니다.
Tech Spec
LED 세부 스펙
- Pixel Structure
- SMD
- Pixel Pitch
- 1.5625mm
- Module Resolution
- 160 × 160
- Module Size
- 250 × 250mm
- Module Weight
- -
- Cabinet Module Composition
- -
- Cabinet Resolution
- -
- Cabinet Size
- 250 × 500 × 39.5mm / 250 × 750 × 39.5mm / 250 × 1000 × 39.5mm / 500 × 250 × 39.5mm / 750 × 250 × 39.5mm / 1000 × 250 × 39.5mm / 500 × 500 × 39.5mm
- Cabinet Area
- -
- Weight
- 20kg/㎡
- Pixel Density
- 409,600 point/㎡
- Brightness
- 600nit
- Scanning Method
- -
- Color Temperature
- 3,000~10,000K Adjustable
- Viewing Angle
- Horizontal 160° / Vertical 140°
- Brightness Uniformity
- -
- Color Uniformity
- -
- Contrast Ratio
- 4,000:1
- Power Consumption
- Max 480W/㎡
Average 160W/㎡ - Power Supply Requirements
- AC100~240V, 50/60Hz
- Frame Rate
- 50 & 60Hz
- Refresh Rate
- 3,840Hz
- Typical Life
- 100,000 hours
- Operating Temperature
- -20~40℃
- Storage Temperature
- -30~60℃
- Operating Humidity
- 10~80%
- Storage Humidity
- 10~85%
- IP Rating
- IP30
- Maintenance
- Front & Rear Maintenance
